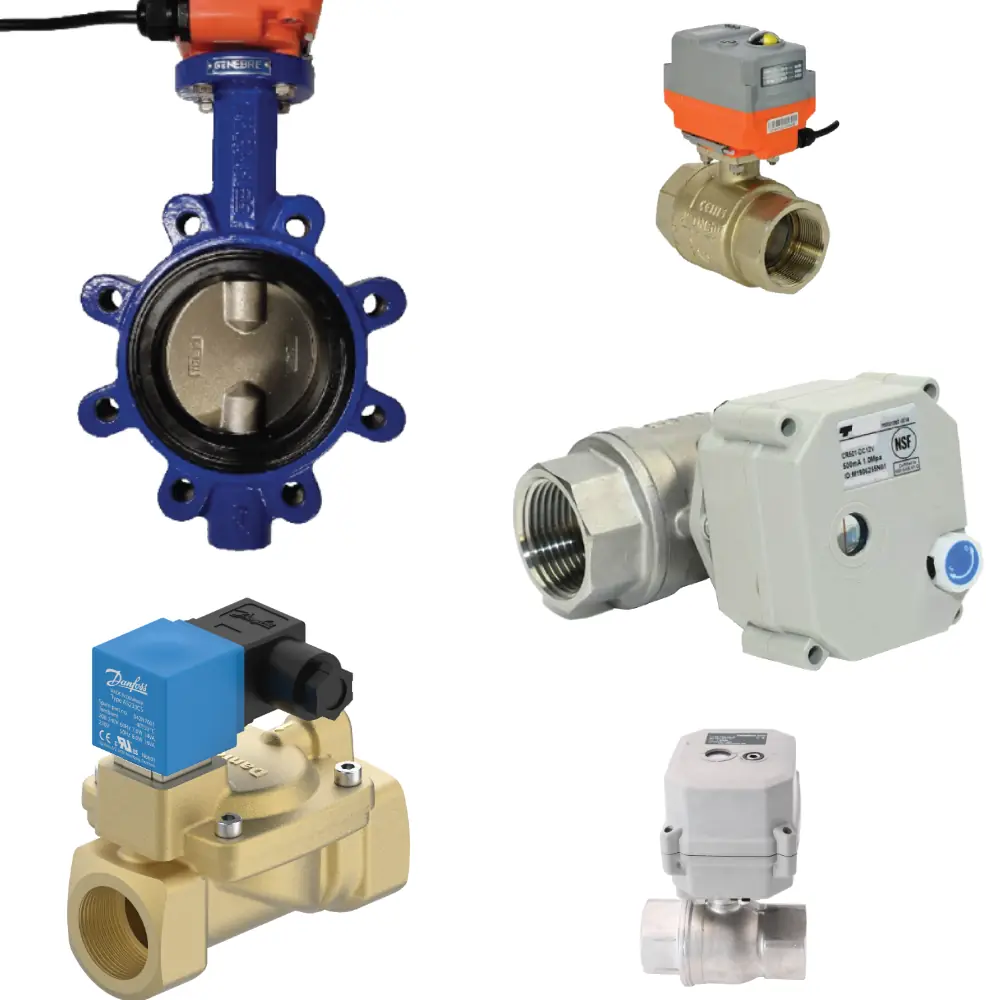

Discover WRAS Approved solenoid, motorised, and butterfly valves for precise, reliable fluid control in residential and industrial applications.
Request A Quote Download The Brochure
We use quality 12v latching solenoid valves to provide the most efficient, lowpower and robust solution to shutting off the water flow.
| Specification | VLV11S | VLV17S | VLV22S |
|---|---|---|---|
| Thread Size | ¾" male BSPP | ¾" female BSPP | 1" female BSPP |
| Pressure Rating | 0.2-10 bar | 0.3-10 bar | 0.3-10 bar |
| Temperature Rating | 60 C | 85 C | 85 C |
| Body Material | Glass Fiber reinforced Polyamide | Brass | Brass |
| Dimensions (mm) | 61.3 x 38.1 x 73.5 | 68.2 x 50.2 x 83.4 | 116 x 80.4 x 120.9 |
| Electrical Connector | 4m, 2 core cable with Faston connectors | Clip-on coil | Clip-on coil |
Full bore 2 piece construction, providing full unrestricted flow and a very low pressure drop across the valve. Turning the ball through 90° fully opens the valve, turning back through 90° fully closes the valve and isolates the flow.Comes with visual indicator line and manual override.
| Specification | VLV20M | VLV25M | VLV32M |
|---|---|---|---|
| Plumbing Connection | ¾” | 1” | 1 1/4 ” |
| Nominal Diameter, d (mm) | 20 | 25 | 32 |
| Pressure Rating | 10 Bar at ambient temperature | ||
| Temperature Rating | 90 Celsius | ||
| Valve Material | Stainless Steel SS304 | ||
| Dimensions (mm) |
L1 = 72 L2 = 17 E1 = 31 H1 = 76 H2 = 20 |
L1 = 81 L2 = 18 E1 = 38 H1 = 78 H2 = 25 |
L1 = 102 L2 = 23 E1 = 47 H1 = 122 H2 = 31 |
| Weight (kg) | 0.5 | 0.65 | 0.8 |
| Electrical Connector | 5 core cable to terminal block with open/close feedback | ||
The VLV40-50M is a large motorised valve designed for high-capacity fluid control in demanding industrial applications. It provides accurate, automated regulation and is built to withstand harsh environments, ensuring long-term reliability and performance.
| Specification | VLV40M | VLV50M |
|---|---|---|
| Plumbing Connection | 1.5” female BSPP | 2” female BSPP |
| Nominal Diameter, DN (mm) | 40 | 50 |
| Pressure Rating | 40 Bar at ambient temperature | 40 Bar at ambient temperature |
| Temperature Rating | 60 Celsius (95 Celsius with extra mounting kit) | 60 Celsius (95 Celsius with extra mounting kit) |
| Valve Material | Chrome plated brass | Chrome plated brass |
| Dimensions (mm) |
A = 102 B = 88 C = 58 E = 102 H = 146 W = 70 |
A = 102 B = 88 C = 65 E = 124 H = 154 W = 70 |
| Weight (kg) | 2.2 | 3.0 |
| Electrical Connector | 5 core cable to terminal block with open/close feedback | |
The VLV50-200 is an extra-large motorised butterfly valve designed for heavy-duty industrial applications. It offers efficient flow control for large volumes of fluid, combining robust construction with reliable automation for optimal performance in challenging conditions.
| Specification | VLV50 | VLV65 | VLV80 | VLV100 | VLV150 | VLV200 |
|---|---|---|---|---|---|---|
| Plumbing Connection | 2” | 2.5” | 3” | 4” | 6” | 8” |
| Nominal Diameter, DN (mm) | 50 | 65 | 80 | 100 | 150 | 200 |
| Pressure Rating | PN16 | |||||
| Temperature Rating | 60 Celsius | |||||
| Body Material | Cast iron | |||||
| Disc Material | Stainless Steel | |||||
| Flange Connections | Lugged Flanged PN16 Cast Iron | |||||
| Dimensions with Actuator (mm) | 440 x 132 x 79 | 454 x 132 x 93 | 496 x 132 x 103 | 506 x 132 x 120 | 545 x 165 x 158 | 631 x 267 x 180 |
| Weight (kg) | 5.6 | 6.3 | 7.8 | 8.9 | 15 | 21 |
| Electrical Connector | 5 core cable to terminal block with open/close feedback | |||||
Quensus flow-based devices accommodate pipe sizes up to 8″, so a single monitoring approach can cover mains supplies across commercial, industrial, and multi-occupancy buildings without forcing a downgrade in measurement quality.
Why it matters: estates often mix pipe diameters between plant rooms, risers, and tenant supplies. A platform that scales with pipe size reduces bespoke engineering, speeds specification, and keeps leak thresholds meaningful on high-volume lines where small percentage losses still mean large volumes of water.
Available on LeakNet Gen2, LeakNet Gen1, Flow Sensors & Meters, LeakNet LP Data Logger, SiteNet for Construction, and Valves. The same capability supports everything from permanent building installs to temporary site protection.
Quensus devices integrate with existing Building Management Systems (BMS), feeding alarms and status into the platform facilities teams already monitor.
Why it matters: duplicate dashboards get ignored. BMS integration puts water events alongside HVAC, access, and fire signals, improving escalation paths and supporting estates that require centralised alarm management, even when cloud connectivity is limited.
Supported on LeakNet Gen2, Flow Sensors & Meters, SiteNet for Construction, and Valves.
Flow-based leak detection identifies abnormal usage and can automatically shut off the water supply to contain damage.
Why it matters: the cost of escape-of-water claims is driven by duration, not just volume. Automatic shut-off turns a potentially catastrophic overnight leak into a contained event, protecting stock, finishes, and neighbouring units while insurers and FM teams regain control.
Core to LeakNet Gen2, LeakNet Gen1, Flow Sensors & Meters, and Valves when paired with Quensus monitoring.
Valves can be opened or closed remotely through FlowReporter, giving authorised users control without a site visit.
Why it matters: when a leak is confirmed out of hours, minutes matter. Remote isolation limits damage, avoids waiting for a plumber to reach site, and supports planned maintenance such as pre-freeze shut-offs or temporary isolation during void periods.
Supported on LeakNet Gen2, LeakNet Gen1, and Valves within the Quensus ecosystem.
Device has a built-in LED indicator for showing the current flow rate.
Monitor the flow rate at this moment in time remotely from the app, making it easy to find & fix leaks.
View consumption in events/minutes/days/months and what this means in terms of bills.
Compare different areas or locations to provide reports and enhance anomaly detection.
Group devices to provide enhanced reporting, comparison and anomaly detection
Device has a built-in audible alarm for alerts.
BMS Output (Alert and/or valve status).
Protect large areas with a 5m-100m leak cable for immediate detection of leaks.
Monitor the ambient temperature and automatically shut the water off to prevent freezing.
Remote programming of device.
Integration with wireless splash sensors.
Receive real-time leak notifications on your phone for rapid response.
Get multiple alert channels (SMS, Email) to ensure critical issues aren't missed.
Via app notification, SMS and email alerts.
Override alerts at set dates if you are expecting a temporary change in usage (high or low).
Advanced algorithms pinpoint even the smallest drips, enhancing low flow accuracy of flow sensors.
Shut-off immediately to prevent damage from burst pipes using the maximum flowrate normally observed.
Harness the power of machine learning to adapt leak detection based your normal usage
Automatic shut-off using maximum time, volume, flowrate, leak cable
Compatible with solenoid and motorised valves up to 8".
Valve bypass for fire sprinkler override functionality.
Remotely shut the water off or open the valve to let water through and temperature (freezing)
Scheduled shut-off and open at different times of the day.
Automatically shut off water supply in areas of prolonged inactivity to prevent waste and mitigate risks.
Identify areas where water has been stagnant for preset period and purge water supply to mitigate legionella risk.
Ensure the reliability and longevity of your fittings by regularly exercising valves to prevent seizing.
Always have the latest firmware.
Shared access with unlimited users.
No WiFi? No problem. We can provide a completely closed, plug-and-play system.
Peace of mind with up to 3 years (LeakNet panel) and 5 years (splash sensors) coverage.
Get replies within a day about your issue
Making sure devices are installed correctly.
Helping you to make sense of the data, program alerts, and co-ordinate leak finding and fixing
Tailored water management plan that builds around your needs
Guarantee proper installation and end-user training for optimal performance.
Clear guidance for leak response, minimising confusion.
Streamline the design process with expert consultation and clear installation specifications.
Seamlessly integrate realtime water data with your existing building management systems, analytics platforms, or custom applications.
Receive custom monthly reports highlighting water usage, leak alerts, and savings opportunities. Easily prove sustainability goals and other KPIs.
Device has a built-in LED indicator for showing the current flow rate.
Monitor the flow rate at this moment in time remotely from the app, making it easy to find & fix leaks.
View consumption in events/minutes/days/months and what this means in terms of bills.
Compare different areas or locations to provide reports and enhance anomaly detection.
Device has a built-in audible alarm for alerts.
BMS Output (Alert and/or valve status).
Protect large areas with a 5m-100m leak cable for immediate detection of leaks.
Remote programming of device.
Monitor the ambient temperature and automatically shut the water off to prevent freezing.
Integration with wireless splash sensors.
Harness the power of machine learning to adapt leak detection based your normal usage.
Get multiple alert channels (SMS, Email) to ensure critical issues aren't missed.
Via app notification, SMS and email alerts.
Override alerts at set dates if you are expecting a temporary change in usage (high or low).
Advanced algorithms pinpoint even the smallest drips, enhancing low flow accuracy of flow sensors
Shut-off immediately to prevent damage from burst pipes using the maximum flowrate normally observed.
Harness the power of machine learning to adapt leak detection based your normal usage.
Automatic shut-off using maximum time, volume, flowrate, leak cable.
Compatible with solenoid and motorised valves up to 8".
Valve bypass for fire sprinkler override functionality.
Remotely shut the water off or open the valve to let water through and temperature (freezing).
Scheduled shut-off and open at different times of the day.
Automatically shut off water supply in areas of prolonged inactivity to prevent waste and mitigate risks.
Identify areas where water has been stagnant for preset period and purge water supply to mitigate legionella risk.
Compare different areas or locations to provide reports and enhance anomaly detection
Always have the latest firmware.
Shared access with unlimited users.
Insurance requirements are getting more stringent, but we are here to help with best practices.
No WiFi? No problem. We can provide a completely closed, plug-and-play system.
Group devices to provide enhanced reporting, comparison and anomaly detection.
Get replies within a day about your issue.
Making sure devices are installed correctly.
Helping you to make sense of the data, program alerts, and co-ordinate leak finding and fixing.
Tailored water management plan that builds around your needs.
Guarantee proper installation and end-user training for optimal performance.
Clear guidance for leak response, minimising confusion.
Streamline the design process with expert consultation and clear installation specifications.
Seamlessly integrate realtime water data with your existing building management systems, analytics platforms, or custom applications.
Receive custom monthly reports highlighting water usage, leak alerts, and savings opportunities. Easily prove sustainability goals and other KPIs.
